Hydranautics LFC3-LD



Individual offer for 10+ pcs. Please use our ask form.

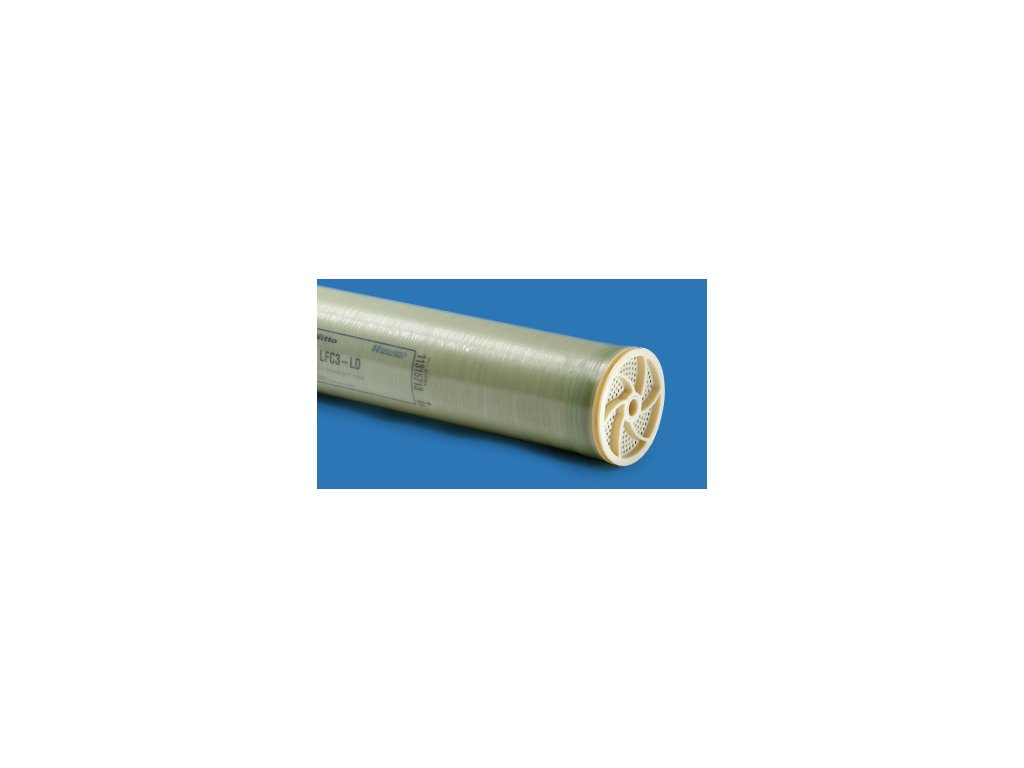

LFC3-LD from the LD Technology™ innovative low fouling reverse osmosis membranes combines the attributes of a neutrally charged surface with hydrophilicity to achieve the lowest organic and colloidal fouling in the most demanding feed water conditions.

Combining the attributes of a neutral surface charge and hydrophilicity, LFC3-LD provides significant reduction in fouling rates increasing the membrane’s efficiency by restoring nominal performance after cleaning.

The low fouling composite LFC3-LD (Low Differential Pressure) provides a neutral surface charge that reduces fouling when treating wastewater and surface water with high fouling potential. With the low fouling LD Technology™, the differential pressure gets reduced lowering the biological and colloidal fouling inside the membrane, and successfully reducing the number of cleanings required!

LFC3-LD reverse osmosis membrane is available in diameters of 4.0 and 8.0 inches.

Availability In stock (>5 pcs)
€650
€786,50 incl. VAT


Parameters

Product code 22
Brand Hydranautics
Brand's website membranes.com/
Category Brackish Water
Warranty 1 year


Description

General Product Description*
Size: 8″ diameter & 40″ length
Permeate Flow: 11,000 gpd (41.6 m3 /d)
Salt Rejection: 99.7% (99.5% minimum)
Configuration: Low Fouling Spiral Wound
Membrane Polymer: Composite Polyamide

Product Use and Restrictions
Maximum Applied Pressure: 600 psig (4.14 MPa)
Maximum Chlorine Concentration: < 0.1 ppm
Maximum Operating Temperature: 113 °F (45 °C)
pH Range, Continuous (Cleaning): 2-10 (1-12)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 5.0
Maximum Feed Flow: 85 gpm (19.3 m3 /h)
Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)


*Please refer to standard testing conditions and details in the enclosed datasheet
Weight 15 kg
